Minelab

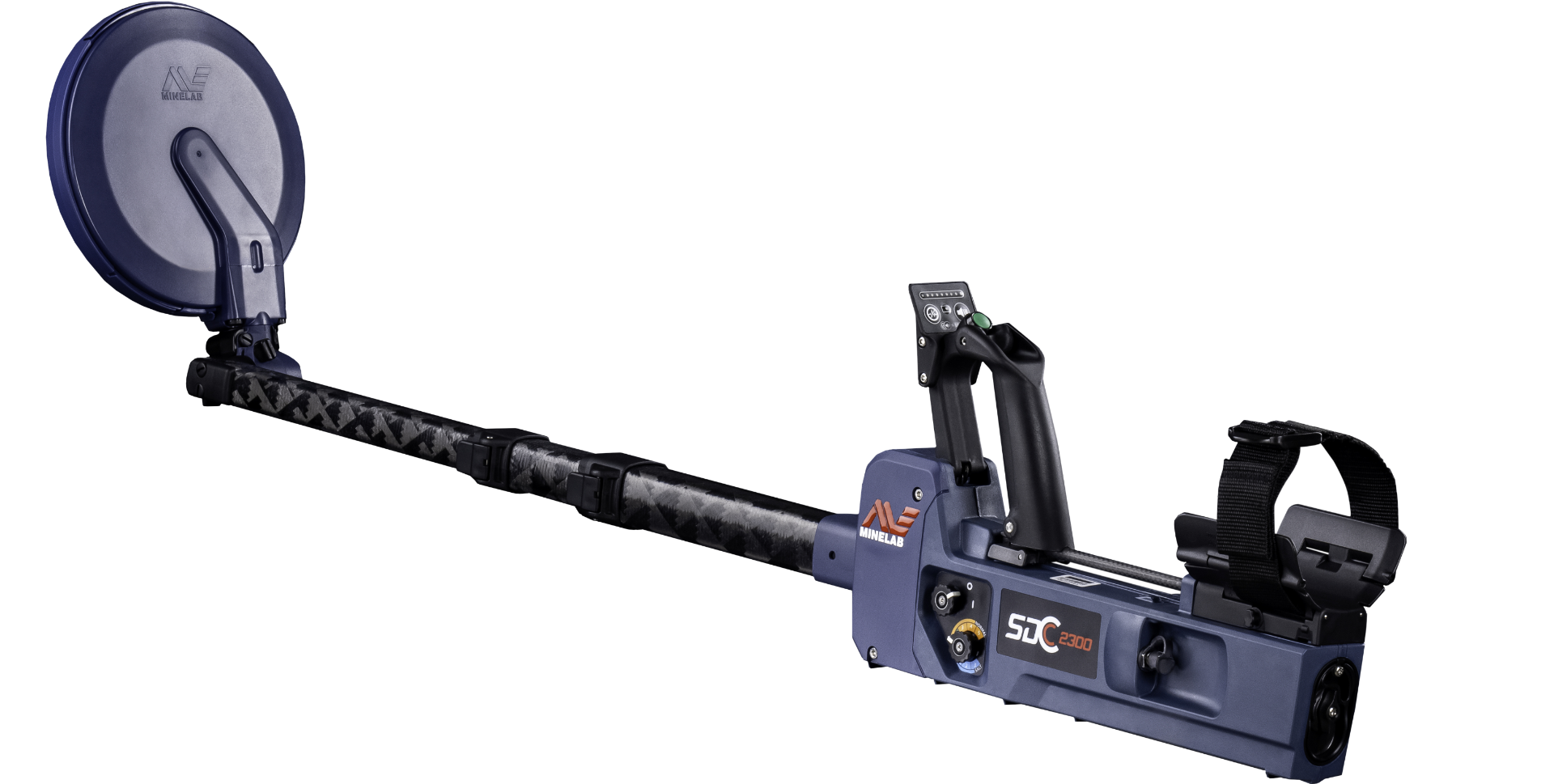

Minelab SDC 2300
The Minelab SDC 2300 is a compact gold-prospecting detector using ultra-fast MPF pulse induction technology, with a fully collapsible design (no disassembly required) that folds down to just 40cm for easy backpack carrying. Waterproof to 3 meters for searching directly in riverbeds and on beaches, with automatic ground balance, a dedicated saline-ground mode, and 9 LED indicators showing signal strength and battery level — built to military-grade standards for prospecting the toughest terrain without any assembly.
Price on request
- Made in
- Australia
- Warranty
- Official 3-year warranty
- Weight
- 2.3 kg (5.1 lb)
Or call+92-311-1444615
- Authorized distributor — factory-sealed stock
- Genuine manufacturer warranty
- Free training session with every purchase
- Insured nationwide delivery
- SKU
- SDC-2300
- Category
- Gold Detectors
Overview
What this machine is built for.
The SDC 2300 is built on technology used in equipment trusted by armed forces worldwide — a pulse induction (PI) detector engineered for durability in harsh environments. Its unique folding design compresses the unit without disassembly, for quick setup and easy transport.
MPF (Multi Period Fast) technology uses ultra-fast pulse switching between transmit and receive, reducing residual interference during reception and delivering clearer signals and more precise detection of the smallest gold pieces.

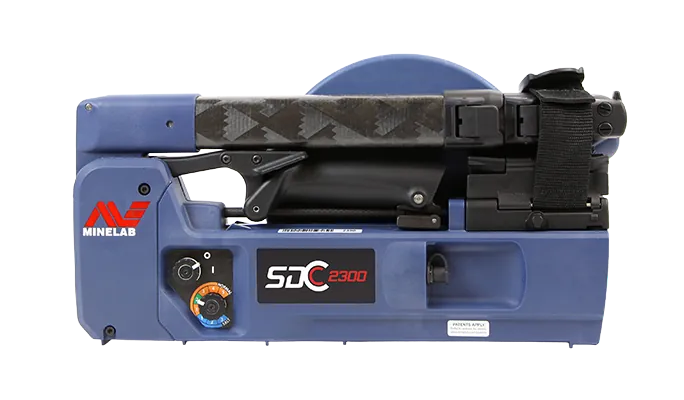

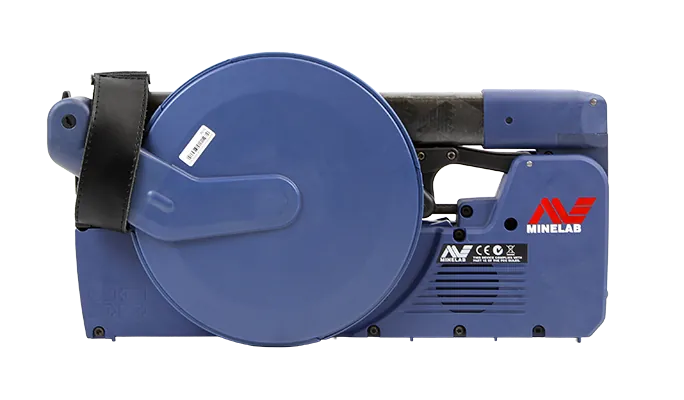

Weighing just 2.3 kg and folding down to 40cm for easy transport in a bag, it uses an 8 inch round Monoloop coil that is waterproof to 3 meters, with continuous automatic ground tracking, a dedicated Salt mode for saline environments, and 9 LED indicators showing battery level and response strength.
Ideal for
- 01Gold prospectors working highly mineralized and saline ground
- 02Rocky gullies, dry riverbeds, and shallow water
- 03Anyone who needs a compact, easy-to-transport detector for long field trips
- 04Prospectors who prefer simplicity: instant operation without complex settings
Key features
High-performance MPF technology
ultra-fast pulse switching for clearer signal response.
Compact folding design
folds down to 40cm without disassembly.
Fully waterproof to 3 meters
tightly sealed electronics.
Military-spec-grade materials
rigid carbon shaft to withstand rough terrain.
Automatic ground tracking
Normal and Salt modes to adapt to any soil.
9 LED indicators
clear visual and audio response to target size and depth.
Two battery options
rechargeable lithium-ion pack or C alkaline batteries.
High-Performance MPF Technology
ultra-fast switching between transmit and receive reduces interference and improves signal clarity for more precise detection of small gold, even in mineralized ground.
Automatic Ground Tracking
Normal mode suits most ground, while Salt mode is dedicated to saline, highly mineralized environments such as beaches and salt lakes, with continuous tracking of soil changes.
Noise Cancel
a single button manually cancels electromagnetic interference to keep performance stable.
Audio & Visual Response
9 LED indicators paired with audio tones reflect target size and depth — a low, quiet tone for small or deep targets, and a high tone for large or shallow targets.
Full specifications
Every figure we hold on this machine.
18 entries
- Price
- Price on request
- Made In
- Australia
- Warranty
- Official 3-year warranty
- Technology
- MPF (Multi Period Fast) — ultra-fast PI pulse processing
- Weight
- 2.3 kg (5.1 lb)
- Ground Modes
- Normal for regular ground / Salt for saline and highly mineralized ground
- Ground Balance
- Automatic, continuous ground tracking
- Noise Cancel
- Manual, one-press noise cancel
- Response
- 9 LED indicators + audio tones based on target size and depth
- Sensitivity
- Direct control dial for sensitivity adjustment
- Length
- Folded: 40cm (15.7 in), telescopic hinged design
- Shaft
- Fully carbon fiber for high rigidity
- Standard Search Coil
- 8 inch round Monoloop, waterproof
- Battery
- Rechargeable lithium-ion pack (up to 8 hours) or 4x C alkaline batteries (not included)
- Water Resistance
- Unit and coil fully waterproof to 3 meters (10 ft)
- Audio
- Internal speaker + included Minelab headphones + 6-pin port for wired headphones
- Audio Settings
- 9 threshold levels with a choice of low or high tone
- Detects
- The finest gold pieces across all ground types, including shallow water
In the box
- Main control unit
- 8 inch round Monoloop waterproof search coil
- Telescopic hinged carbon shaft
- Minelab wired headphones
- Rechargeable lithium-ion battery pack with charger
- Backup C-battery holder (batteries not included)
- Quick start guide
Before you buy
Buying the Minelab SDC 2300.
Is this Minelab SDC 2300 genuine, authorized stock?
Yes. Pakistan Detectors Technology is an authorized distributor, and every unit we sell — including this one — is genuine factory stock backed by a valid international manufacturer warranty.
What warranty does the Minelab SDC 2300 carry?
Official 3-year warranty — backed by the manufacturer and honoured through our authorized service channel. If you experience an issue, contact us via WhatsApp or phone with your order details and we will coordinate the claim directly with the manufacturer's regional service center.
Do you deliver across Pakistan, and how long does it take?
Yes, we offer nationwide insured delivery. Orders within major cities typically arrive in 2–4 business days; remote areas may take slightly longer. You'll receive tracking details once your order ships.
Is training included, and how does it work?
Yes, every purchase includes a free product training session — either in person at our Islamabad office or over a video call — covering setup, ground balancing, and field operation specific to your terrain.
