OKM Gepard GPR 3D
The OKM Gepard GPR 3D is a ground penetrating radar with 2D and 3D views.
Price on request
- Warranty
- 2 years
Or call+92-311-1444615
- Authorized distributor — factory-sealed stock
- Genuine manufacturer warranty
- Free training session with every purchase
- Insured nationwide delivery
- SKU
- GPR-D01
- Category
- Underground Imaging
Overview
What this machine is built for.
It works at 60–300 MHz and shows radargrams and 3D scans on an Android tablet, for cavities, tunnels and structures.
About 4 hours per charge; rated 40 m by OKM. Contact us for pricing.
Ideal for
- 01Engineering and Utilities
- 02Cavity and Tunnel Survey
- 03Archaeology Teams
Key features
True Ground Penetrating Radar
Radar pulses at 60-300 MHz map layers and buried structures.
2D and 3D Modes
Live 2D radargrams plus full 3D Ground Scan recordings.
Telescopic Unshielded Antennas
Adjustable triangular antennas for flexible survey setups.
Android Tablet Display
Colour touchscreen tablet shows radar images in real time.
Professional Software
Visualizer 3D Studio Professional included for analysis.
GPS Support
Supports GPS integration for mapping scan positions.
Full specifications
Every figure we hold on this machine.
16 entries
- Price
- Price on request
- Technology
- Ground penetrating radar, omnidirectional unshielded transmission
- Frequency Range
- 60-300 MHz
- Operating Modes
- 3D Ground Scan, 2D Radargram
- Depth (manufacturer rating)
- Up to 40 m (132 ft)
- Display
- Android tablet with colour touchscreen
- Sampling
- 9 complete cycle measurements per second
- Battery
- 7.26 V / 2600 mAh (in telescopic shaft)
- Operating Time
- Approx. 4 hours
- Control Unit
- 450 x 260 x 130 mm, approx. 1.6 kg
- Antenna
- 1010 x 330 x 50 mm, 1.5 kg
- Protection Class
- IP20
- Operating Temperature
- -20 °C to 55 °C
- Made In
- Germany
- Warranty
- 2 years
- Manufacturer
- OKM GmbH, Germany

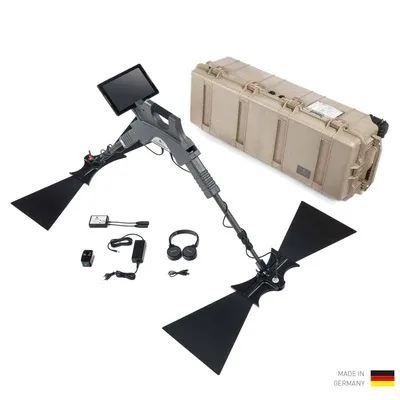

In the box
- 1x Control Unit
- 1x Android Tablet
- 2x Telescopic Shaft
- 1x Sending Antenna
- 1x Receiving Antenna
- 1x USB Flash Drive with Visualizer 3D Studio Professional
- 1x Bluetooth Headphones
- 1x Charger
- 1x Travel Adapter Set
- 1x Protector Case
- 1x Quick Start Guide
Before you buy
Buying the OKM Gepard GPR 3D.
Is this OKM Gepard GPR 3D genuine, authorized stock?
Yes. Pakistan Detectors Technology is an authorized distributor, and every unit we sell — including this one — is genuine factory stock backed by a valid international manufacturer warranty.
What warranty does the OKM Gepard GPR 3D carry?
2 years — backed by the manufacturer and honoured through our authorized service channel. If you experience an issue, contact us via WhatsApp or phone with your order details and we will coordinate the claim directly with the manufacturer's regional service center.
Do you deliver across Pakistan, and how long does it take?
Yes, we offer nationwide insured delivery. Orders within major cities typically arrive in 2–4 business days; remote areas may take slightly longer. You'll receive tracking details once your order ships.
Is training included, and how does it work?
Yes, every purchase includes a free product training session — either in person at our Islamabad office or over a video call — covering setup, ground balancing, and field operation specific to your terrain.
