Ajax
Ajax Troy
The Ajax Troy is a Ajax 3D ground imaging system, with 3D Imaging, 2 Systems, 3.7 kg Kit.
Price on request
- Warranty
- 2 years
Or call+92-311-1444615
- Authorized distributor — factory-sealed stock
- Genuine manufacturer warranty
- Free training session with every purchase
- Insured nationwide delivery
- SKU
- AJAX-Troy
- Category
- Underground Imaging
Overview
What this machine is built for.
Its main features include 3D ground imaging, gradio smart system and compact kit, and it is well suited to checking a suspected spot and solo prospectors.
Genuine stock with warranty and training from our Islamabad office. Contact us for pricing.
Ideal for
- 01Checking a suspected spot
- 02Solo prospectors
- 03Cavity detection
Key features

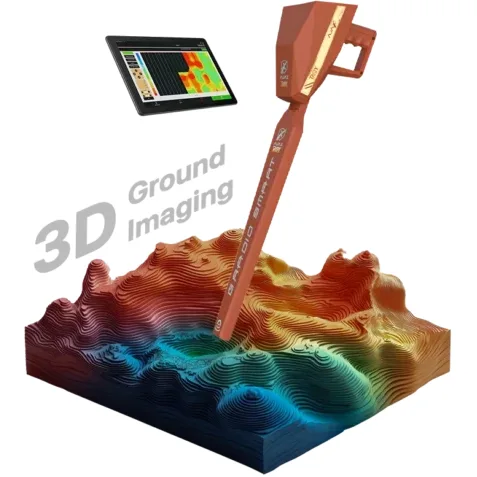

3D Ground Imaging
Creates 3D images to estimate a target's shape, size and depth.
Gradio Smart system
Magnetic-field sensing for metals and voids closer to the surface.
Compact kit
Packed weight of about 3.7 kg makes it easy to carry to remote sites.
5-inch colour screen
800 x 480 TFT display, with optional tablet connection.
Distance-based audio
Tones change with target distance, with optional headphone use.
10-hour battery
7.4 V, 3300 mAh rechargeable battery for a full day of scanning.
Full specifications
Every figure we hold on this machine.
17 entries
- Price
- Price on request
- Detection System
- 2 systems: 3D Ground Imaging, Gradio Smart
- Operating Principle
- Digital signal processing converted to visual and audible results
- 3D Imaging Depth
- Up to 30 m (manufacturer claim)
- Gradio Smart Depth
- Up to 10 m (manufacturer claim)
- Processor
- MIPS 32, M4K Core
- Display
- 5-inch TFT colour LCD, 800 x 480 WVGA, 16-bit colour
- Battery
- 7.4 V, 3300 mAh rechargeable
- Battery Life
- Typical 10 hours
- Storage
- 1 GB, up to 1000 scans
- Bluetooth
- 2.4 GHz, sensitivity up to -80 dBm
- Languages
- 8 languages
- Package Dimensions
- 62 x 33 x 18 cm
- Package Weight
- 3.7 kg
- Operating Temperature
- -10 °C to 60 °C
- Warranty
- 2 years
- Manufacturer
- AJAX Detection Technology LTD
In the box
- Ajax Mini Bag
- Tablet
- Gradio Smart Sensor
- Power Adapter
- Headphone
Before you buy
Buying the Ajax Troy.
Is this Ajax Troy genuine, authorized stock?
Yes. Pakistan Detectors Technology is an authorized distributor, and every unit we sell — including this one — is genuine factory stock backed by a valid international manufacturer warranty.
What warranty does the Ajax Troy carry?
2 years — backed by the manufacturer and honoured through our authorized service channel. If you experience an issue, contact us via WhatsApp or phone with your order details and we will coordinate the claim directly with the manufacturer's regional service center.
Do you deliver across Pakistan, and how long does it take?
Yes, we offer nationwide insured delivery. Orders within major cities typically arrive in 2–4 business days; remote areas may take slightly longer. You'll receive tracking details once your order ships.
Is training included, and how does it work?
Yes, every purchase includes a free product training session — either in person at our Islamabad office or over a video call — covering setup, ground balancing, and field operation specific to your terrain.
